DUAL LOADED/CLOSED ENDS
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |

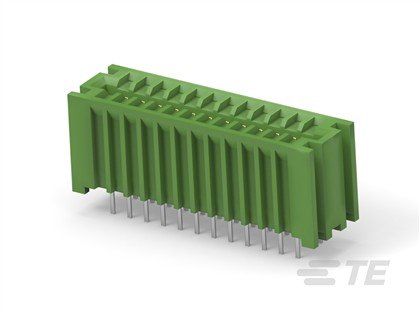

| Part Number | 1-166087-2 |
| PRC | AMP |
| Centerline (Pitch) | .1 in 2.54 mm |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector & Housing Type | Receptacle |
| Connector Mounting Type | Board Mount |
| Connector System | Board-to-Board |
| Contact Current Rating (Max) | 3:00 AM |
| Housing Material | Thermoplastic Polyester -20% GF |
| Number of Positions | 18 |
| Number of Rows | 2 |
| Operating Temperature Range | -40 – 105 °C -40 – 221 °F |
| PCB Mount Orientation | Vertical |
| Primary Product Color | Green |
| Row-to-Row Spacing | .2 in 5.08 mm |
| Termination Method to Wire & Cable | Solder Eyelet |
