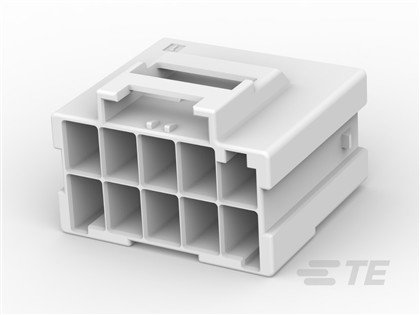

10 Rectangular Connectors – Housings Receptacle N
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 1-1971774-5 |
| PRC | AMP |
| Agency/Standard | UL |
| Centerline (Pitch) | .236 in 6 mm |
| Circuit Application | Power |
| Connector & Contact Terminates To | Wire & Cable |
| Connector Mounting Type | Cable Mount |
| Connector System | Wire-to-Wire |
| Contact Layout | Matrix |
| Contact Type | Tab |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Housing Color | Natural |
| Housing Material | PBT GF |
| Number of Positions | 10 |
| Number of Power Positions | 10 |
| Number of Rows | 2 |
| Operating Temperature Range | -55 – 105 °C -67 – 221 °F |
| Operating Voltage | 600 VAC |
| Packaging Method | Carton |
| Panel Mount Feature | Without |
| Row-to-Row Spacing | .319 in 8.1 mm |
| Sealable | No |
| UL Flammability Rating | UL 94V-0 |
| UL Rating | Recognized |
