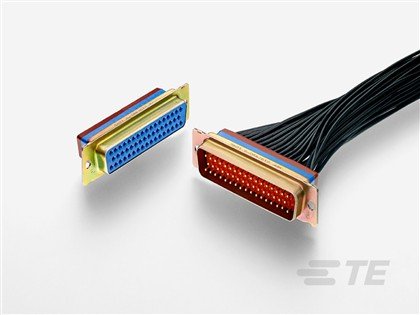

CONN D-SUB HOUSING RCPT 37POS
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 1-2157481-4 |
| PRC | AMP |
| Centerline (Pitch) | .109 in 2.77 mm |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Receptacle |
| Connector Product Type | Housing |
| Connector System | Cable-to-Cable |
| Contact Base Material | Copper Alloy |
| Contact Current Rating (Max) | 7.5 A |
| Contact Mating Area Plating Material | Gold |
| Contact Mating Area Plating Material Thickness | 50 – 100 µin 1.3 µm |
| Contact Size | Size 20 |
| Contact Type | Socket |
| Contact Underplating Material | Nickel |
| Mating Alignment | Without |
| Number of Positions | 37 |
| Operating Temperature Range | -55 – 125 °C -67 – 257 °F |
| Packaging Method | Individual |
| Sealable | Yes |
