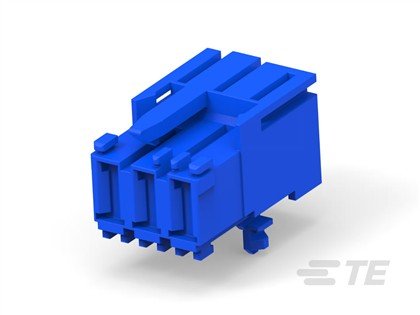

Headers & Wire Housings MULTIFIT MK2 ASSY3P
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 1-2178661-3 |
| PRC | AMP |
| Agency/Standard | UL |
| Centerline (Pitch) | .196 in 5 mm |
| Circuit Application | Power |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Receptacle |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector Product Type | Connector Assembly |
| Connector System | Wire-to-Board |
| Contact Current Rating (Max) | 16 A |
| Contact Layout | Inline |
| Contact Mating Area Plating Material | Silver |
| Contact Retention Within Housing | Without |
| Glow Wire Rating | Glow Wire |
| Housing Color | Natural |
| Housing Material | Polyamide |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Mating Retention | With |
| Mating Retention Type | Locking Latch |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature Range | -40 – 110 °C -40 – 230 °F |
| Operating Voltage | 250 VAC 250 VDC |
| Sealable | No |
| Shielded | No |
| Termination Method to Wire & Cable | Insulation Displacement (IDC) |
| UL Flammability Rating | UL 94V-2 |
