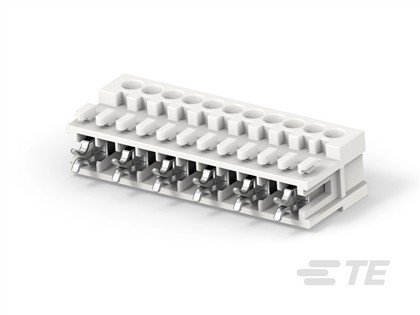

Rectangular MIL Spec Conn 11P MONOPLUG 2.5
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 1-2232891-1 |
| PRC | AMP |
| Centerline (Pitch) | .098 in 2.5 mm |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Receptacle |
| Connector Height | .287 in 7.3 mm |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Board |
| Contact Base Material | Copper Alloy |
| Contact Current Rating (Max) | 2:00 AM |
| Contact Retention Within Housing | With |
| Contact Type | Socket |
| Housing Material | PA 66 GF |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Mating Retention | Without |
| Number of Positions | 11 |
| Number of Rows | 1 |
| Operating Temperature Range | -40 – 110 °C -40 – 230 °F |
| Operating Voltage | 250 VAC |
| Packaging Method | Tube |
| Packaging Quantity | 2176 |
| PCB Mount Alignment | Without |
| PCB Mount Orientation | Straddle Mount |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .053 – .064 in 1.36 – 1.64 mm |
| Primary Product Color | Natural |
| Termination Method to Wire & Cable | Insulation Displacement (IDC) |
| UL Flammability Rating | UL 94V-0 |
| Wire Size | 24 – 22 AWG .22 – .35 mm² |
