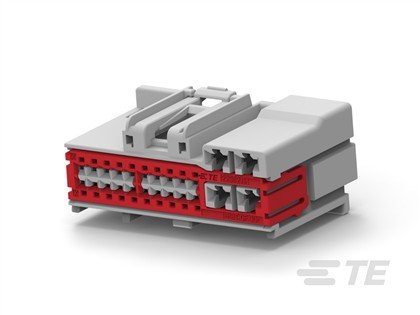

24POS MIXED REC HSG 20GENYMCP A
| Weight | 0.05 kg |
|---|---|
| Dimensions | 31.25 × 40.86 cm |
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 1-2236269-2 |
| PRC | AMP |
| Agency/Standard | USCAR-2 |
| Centerline (Pitch) | .1 in .23 in 2.54 mm 6.05 mm |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Housing for Female Terminals |
| Connector Height | 20.55 mm |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Board Wire-to-Wire |
| Contact Current Rating (Max) | 30 A 7.5 A |
| Contact Size | .64mm 2.8mm |
| Contact Type | Receptacle |
| Housing Material | PA GF |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Mating Tab Width | .025 in .11 in .64 mm 2.8 mm |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 130 °C 266 °F |
| Operating Temperature Range | -40 – 130 °C -40 – 266 °F |
| Packaging Method | Tray |
| Packaging Quantity | 294 |
| Primary Product Color | Gray |
| Row-to-Row Spacing | 2.54 mm 6.4 mm |
| Sealable | No |
| Strain Relief | Without |
