1-2271888-0

1-2271888-0

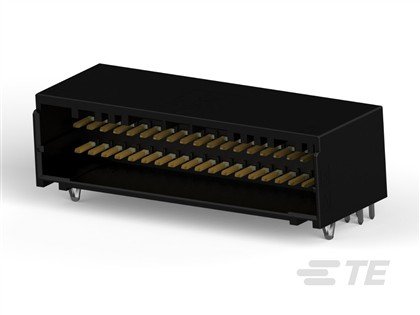

Board Connector 40 Contact(s) 2 Row(s) Male Right

In-stock: 2,200

Bulk Quantity & Price List


Quantity
Unit price
Ext price
10+
US$12.81
US$128.10
30+
US$12.59
US$377.70
60+
US$12.36
US$741.60
150+
US$12.15
US$1,822.50
440+
US$11.05
US$4,862.00
500+
US$7.84
US$3,920.00
1000+
US$6.64
US$6,640.00
Categories: , ,

Additional information

Weight 0.05 kg
Manufacturer TE CONNECTIVITY/AMP BRAND
Part Number 1-2271888-0
PRC AMP
Agency/Standard CSA UL
Approved Standards CSA LR7189
Centerline (Pitch) .078 in 2 mm
Circuit Application Power & Signal
Connector & Contact Terminates To Printed Circuit Board
Connector Height .46 in 11.8 mm
Connector Length 1.67 in 42.6 mm
Connector Mounting Type Board Mount
Connector System Wire-to-Board
Contact Current Rating (Max) 3:00 AM
Contact Layout Matrix
Contact Mating Area Plating Material Tin
Contact Mating Area Plating Material Thickness 39.37 µin 1 µm
Contact Type Tab
Contact Underplating Material Nickel
Header Type Fully Shrouded
Housing Material Glass Filled Thermoplastic Polyester
Mating Alignment With
Mating Alignment Type Keyed
Mating Retention With
Mating Retention Type Locking Window
Mating Tab Thickness .019 in .5 mm
Mating Tab Width .027 in .7 mm
Number of Positions 40
Number of Rows 2
Operating Temperature Range -55 – 105 °C -67 – 221 °F
Operating Voltage 125 VAC 125 VDC
Packaging Quantity 11
Packaging Type Package
PCB Connector Assembly Type PCB Mount Header
PCB Contact Termination Area Plating Material Tin
PCB Contact Termination Area Plating Material Finish Matte
PCB Contact Termination Area Plating Material Thickness 78.74 µin 2 µm
PCB Mount Alignment Without
PCB Mount Orientation Horizontal
PCB Mount Retention With
PCB Mount Retention Type Retention Leg
PCB Thickness (Recommended) .039 – .062 in 1 – 1.6 mm
Primary Product Color Black
Sealable No
Termination Method to Printed Circuit Board Through Hole - Solder
Termination Post & Tail Length .122 in 3.1 mm
UL Flammability Rating UL 94V-0
