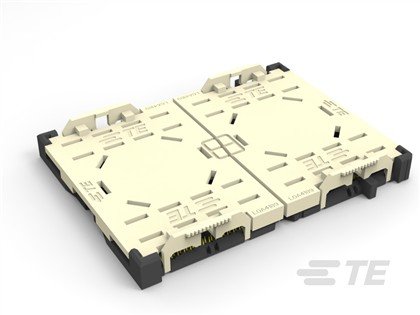

LEFT SEGMENT LGA4189-5 SOCKET-P5 FOR ODM
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 1-2324271-6 |
| PRC | AMP |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Mounting Type | Board Mount |
| Connector System | Board-to-Board |
| Contact Base Material | Copper Alloy |
| Contact Current Rating (Max) | .5 A |
| Contact Mating Area Plating Material | Gold |
| Contact Mating Area Plating Material Thickness | 30 µin |
| Housing Color | Black |
| Housing Material | High Temperature Thermoplastic |
| Number of Positions | 2097 |
| Operating Temperature Range | -25 – 100 °C |
| Packaging Method | Tray |
| UL Flammability Rating | UL 94V-0 |
