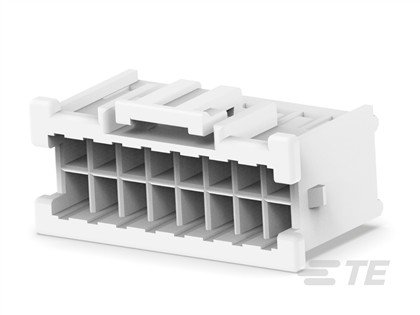

Board Connector 16 Contact(s) 2 Row(s) Female Cri
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 1-2324579-6 |
| PRC | AMP |
| Centerline (Pitch) | .098 in 2.5 mm |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Plug |
| Connector Height | .326 in 8.3 mm |
| Connector Length | .828 in 21.04 mm |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector Product Type | Housing |
| Connector System | Wire-to-Wire |
| Contact Current Rating (Max) | 3:00 AM |
| Contact Type | Socket |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Housing Material | Nylon |
| Mating Retention | With |
| Mating Retention Type | Latch |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Operating Temperature Range | -55 – 105 °C -67 – 221 °F |
| Operating Voltage | 250 VAC |
| Packaging Method | Bag |
| Packaging Quantity | 1500 |
| Panel Mount Feature | Without |
| PCB Mount Retention | Without |
| Primary Product Color | Natural |
| Row-to-Row Spacing | .09 in 2.5 mm |
| Sealable | No |
| Strain Relief | Without |
| Termination Method to Wire & Cable | Crimp |
| UL Flammability Rating | UL 94V-0 |
| Wire Size | 26 – 22 AWG .13 – .33 mm² |
