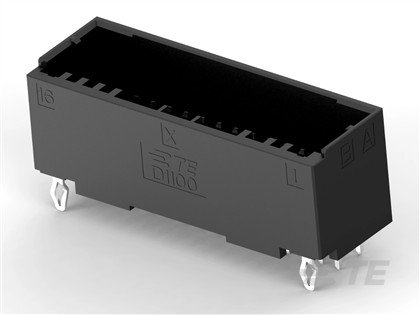

1-2329463-6

Additional information

Weight	0.05 kg
Manufacturer	TE CONNECTIVITY/AMP BRAND
Part Number	1-2329463-6
PRC	AMP
Agency/Standard	CSA UL
Approved Standards	CSA LR7189
Centerline (Pitch)	.078 in 2 mm
Circuit Application	Power & Signal
Connector & Contact Terminates To	Printed Circuit Board
Connector Height	.49 in 12.45 mm
Connector Length	1.362 in 34.6 mm
Connector Mounting Type	Board Mount
Connector System	Wire-to-Board
Contact Current Rating (Max)	3:00 AM
Contact Layout	Matrix
Contact Mating Area Plating Material	Tin
Contact Mating Area Plating Material Thickness	39.37 µin 1 µm
Contact Type	Pin
Contact Underplating Material	Nickel
Header Type	Fully Shrouded
Housing Material	Thermoplastic Polyester GF
Mating Alignment	With
Mating Alignment Type	Polarization
Mating Retention	With
Mating Tab Thickness	.019 in .5 mm
Mating Tab Width	.027 in .7 mm
Number of Positions	32
Number of Rows	2
Operating Temperature Range	-55 – 105 °C -67 – 221 °F
Operating Voltage	125 VAC 125 VDC
Packaging Quantity	13
Packaging Type	Tube
PCB Connector Assembly Type	PCB Mount Header
PCB Contact Termination Area Plating Material	Tin
PCB Contact Termination Area Plating Material Finish	Matte
PCB Contact Termination Area Plating Material Thickness	39.37 µin 1 µm
PCB Mount Alignment	Without
PCB Mount Orientation	Vertical
PCB Mount Retention	With
PCB Mount Retention Type	Retention Leg
Primary Product Color	Black
Row-to-Row Spacing	.129 in 3.3 mm
Sealable	No
Termination Method to Printed Circuit Board	Through Hole - Solder
UL Flammability Rating	UL 94V-0
