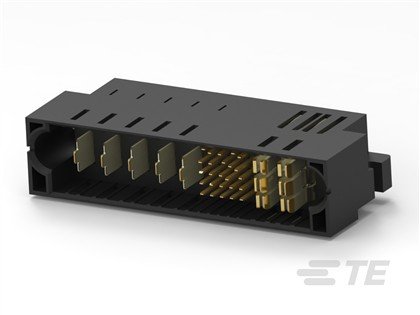

MBPLUS R/A PLUG SOLDER 5LP + 25S + 2P
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 1-2334530-2 |
| PRC | AMP |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector & Housing Type | Plug |
| Connector System | Board-to-Board |
| Contact Current Rating (Max) | 100 A |
| Contact Mating Area Plating Material | Gold |
| Contact Retention Within Housing | With |
| Contact Type | Blade Pin |
| Header Type | Fully Shrouded |
| Housing Color | Black |
| Housing Material | LCP GF30 (Liquid Crystal Polymer) |
| Number of Power Positions | 7 |
| Number of Rows | 5 |
| Number of Signal Positions | 25 |
| Operating Temperature Range | -40 – 125 °C |
| Operating Voltage | 60 VAC 60 VDC |
| Packaging Method | Box & Tray |
| PCB Contact Termination Area Plating Material | Tin |
| PCB Mount Orientation | Horizontal |
| Row-to-Row Spacing | 2 mm |
| UL Flammability Rating | UL 94V-0 |
