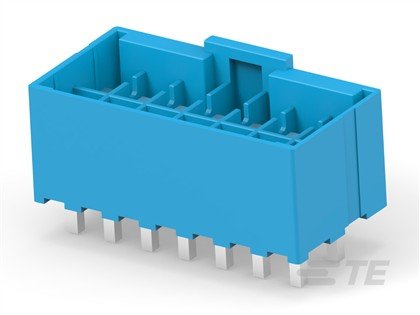

Header 2X7P Blue HCI 4.0 Pitch
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 1-2423324-4 |
| PRC | AMP |
| Centerline (Pitch) | .157 in 4 mm |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector & Housing Type | Housing for Male Terminals |
| Connector Mounting Type | Board Mount |
| Connector System | Wire-to-Board |
| Contact Current Rating (Max) | 9:00 AM |
| Contact Retention Within Housing | With |
| Contact Type | Pin |
| Housing Color | Light Blue |
| Housing Material | PBT |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Number of Signal Positions | 14 |
| Operating Temperature Range | -25 – 85 °C -13 – 185 °F |
| Operating Voltage | 300 VAC |
| Packaging Method | Bag |
| PCB Contact Termination Area Plating Material | Tin over Nickel |
| PCB Mount Orientation | Vertical |
| Row-to-Row Spacing | .234 in 5.95 mm |
| Sealable | No |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| UL Flammability Rating | UL 94V-0 |
