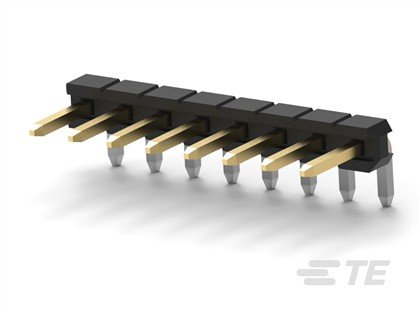

1-2842116-0

Additional information

Weight	0.05 kg
Manufacturer	TE CONNECTIVITY/AMP BRAND
Part Number	1-2842116-0
PRC	AMP
Agency/Standard	UL
Approved Standards	UL E28476
Centerline (Pitch)	.079 in 2 mm
Circuit Application	Signal
Connector & Contact Terminates To	Printed Circuit Board
Connector Length	.787 in 20 mm
Connector Profile	Standard
Connector System	Board-to-Board
Contact Base Material	Brass
Contact Current Rating (Max)	2:00 AM
Contact Layout	Inline
Contact Mating Area Plating Material	Gold
Contact Mating Area Plating Material Thickness	29.92 µin .76 µm
Contact Shape & Form	Square
Contact Type	Pin
Contact Underplating Material	Nickel
Dielectric Withstanding Voltage (Max)	500 VAC
Header Type	Breakaway
Housing Material	PA9T GF
Mating Square Post Dimension	.02 in .5 mm
Number of Positions	10
Number of Rows	1
Operating Temperature Range	-40 – 125 °C -40 – 257 °F
Operating Voltage	125 VAC
Packaging Type	Tube
PCB Connector Assembly Type	PCB Mount Header
PCB Contact Termination Area Plating Material	Tin
PCB Contact Termination Area Plating Material Finish	Bright
PCB Contact Termination Area Plating Material Thickness	78.74 µin 2 µm
PCB Mount Orientation	Right Angle
PCB Thickness (Recommended)	.063 in 1.6 mm
Primary Product Color	Black
Termination Method to Printed Circuit Board	Through Hole - Solder
Termination Post & Tail Length	.11 in 2.8 mm
UL Flammability Rating	UL 94V-0
UL Rating	Recognized
