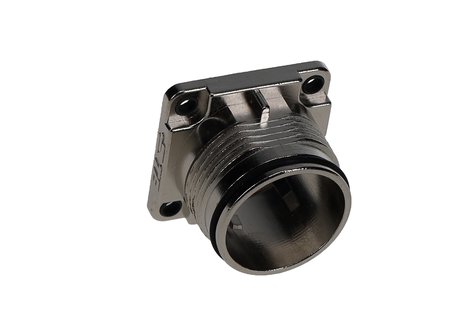

HD Power Conn BULKHEAD HOUSNG ASSY DESIGN METAL
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 1103436-1 |
| PRC | AMP |
| Circuit Application | Power & Signal |
| Connector & Housing Type | Plug |
| Connector Mounting Type | Panel Mount |
| Connector Product Type | Housing |
| Connector System | Cable-to-Panel |
| Contact Current Rating (Max) | 10:00 AM |
| Contact Type | Pin |
| Housing Material | Zinc Alloy |
| Mating Alignment | With |
| Mating Alignment Type | Keyed Polarization |
| Mating Retention | With |
| Mating Retention Type | Threaded Coupling |
| Number of Positions | 12 |
| Number of Power Positions | 12 |
| Number of Signal Positions | 12 |
| Operating Temperature Range | -20 – 80 °C -4 – 176 °F |
| Operating Voltage | 60 VAC 60 VDC |
| Packaging Method | Carton |
| Packaging Quantity | 40 |
| Panel Mount Feature | With |
| Sealable | Yes |
| Shielded | No |
| Termination Method to Wire & Cable | Crimp |
| Thread Size | M26x1 5 |
| UL Flammability Rating | UL 94V-0 |
