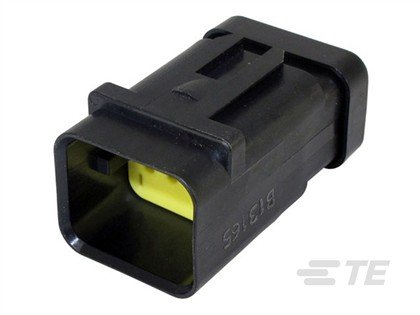

Automotive Conn CAP ASSY 8P BRACKET REVERSE TYPE
| Weight | 0.05 kg |
|---|---|
| Dimensions | 112628.6 × 187247.55 cm |
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 1717676-3 |
| PRC | AMP |
| Centerline (Pitch) | .177 in 4.5 mm |
| Connector & Housing Type | Housing for Male Terminals |
| Connector Height | 1.055 in 26.8 mm |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Wire |
| Contact Current Rating (Max) | 13 A |
| Contact Size | Size 16 |
| Contact Type | Pin |
| Housing Material | PBT |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 100 °C 105 °C 110 °C 120 °C 125 °C 70 °C 75 °C 80 °C 85 °C 90 °C |
| Operating Temperature Range | -40 – 125 °C -40 – 257 °F |
| Operating Voltage | 250 VDC |
| Packaging Method | Bag |
| Packaging Quantity | 50 |
| Primary Product Color | Yellow |
| Row-to-Row Spacing | .209 in 5.3 mm |
| Sealable | Yes |
| Strain Relief | Without |
| UL Flammability Rating | UL 94HB |
