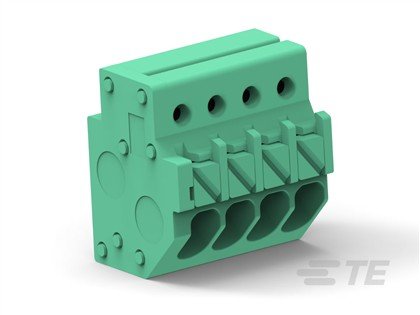

Pluggable Terminal Blocks SPRING TYP FLUSH MNT
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 1986716-6 |
| PRC | AMP |
| Centerline (Pitch) | .138 in 3.5 mm |
| Circuit Application | Signal |
| Connector System | Wire-to-Board |
| Contact Base Material | Stainless Steel |
| Contact Current Rating (Max) | 2:00 AM |
| Contact Mating Area Plating Material | Tin |
| Contact Underplating Material | Nickel |
| Housing Material | PA 66 |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Operating Temperature Range | -40 – 105 °C -40 – 221 °F |
| Operating Voltage | 150 VAC |
| Packaging Quantity | 100 |
| Primary Product Color | Green |
| Termination Method to Wire & Cable | Push-in Spring Terminal |
| Wire Size | 20 – 16 AWG .5 – 1.5 mm² |
