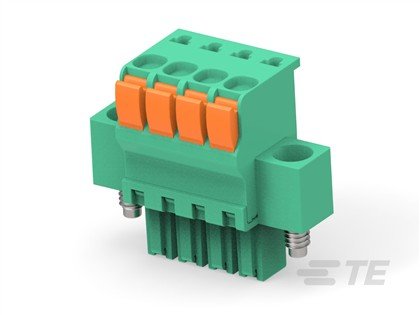

Pluggable Terminal Blocks 3.5MM R/HAND 8 POS STR
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 1986723-8 |
| PRC | AMP |
| Centerline (Pitch) | .138 in 3.5 mm |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector System | Wire-to-Board |
| Contact Base Material | Copper Alloy |
| Contact Current Rating (Max) | 11:00 AM |
| Contact Mating Area Plating Material | Tin |
| Housing Material | PA 66 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Operating Temperature Range | -40 – 65 °C -40 – 149 °F |
| Operating Voltage | 300 VAC |
| Packaging Quantity | 100 |
| Primary Product Color | Green |
| Termination Method to Wire & Cable | Push-in Spring Terminal |
| Wire Size | 30 – 14 AWG .05 – 2 mm² |
