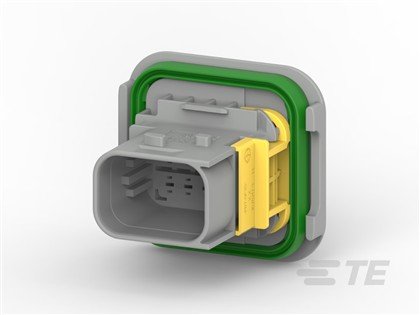

2-1564416-1

Additional information

Weight	0.05 kg
Dimensions	167342.5 × 185247.05 cm
Manufacturer	TE CONNECTIVITY/AMP BRAND
Part Number	2-1564416-1
PRC	AMP
Centerline (Pitch)	.157 in 4 mm
Circuit Application	Signal
Connector & Housing Type	Housing for Male Terminals
Connector Height	1.567 in 39.8 mm
Connector Mounting Type	Panel Mount
Connector System	Wire-to-Wire
Contact Current Rating (Max)	20 A
Contact Size	1.6mm
Contact Type	Tab
Housing Material	PBT GF
Mating Alignment	With
Mating Alignment Type	Keyed
Mating Tab Width	.063 in 1.6 mm
Number of Positions	8
Number of Rows	2
Operating Temperature (Max)	100 °C 105 °C 110 °C 120 °C 125 °C 130 °C 140 °C 70 °C 80 °C 85 °C
Operating Temperature Range	-40 – 140 °C -40 – 284 °F
Operating Voltage	60 VDC
Packaging Method	Carton
Packaging Quantity	250
Primary Product Color	Gray
Row-to-Row Spacing	.472 in 12 mm
Sealable	Yes
Strain Relief	Add By Accessory
UL Flammability Rating	UL 94V-0
