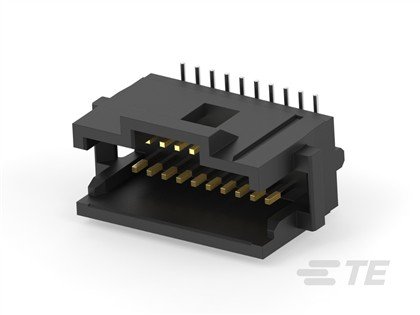

Board Connector 20 Contact(s) 2 Row(s)
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2-1825601-0 |
| PRC | AMP |
| Centerline (Pitch) | .05 in 1.27 mm |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Mounting Type | Board Mount |
| Connector System | Board-to-Board |
| Contact Current Rating (Max) | 3.6 A |
| Contact Mating Area Plating Material | Gold |
| Contact Mating Area Plating Material Thickness | 30 µin .76 µm |
| Contact Type | Socket |
| Header Type | Fully Shrouded |
| Housing Material | LCP |
| Mating Alignment | With |
| Mating Alignment Type | Polarization |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Operating Temperature Range | -65 – 105 °C -85 – 221 °F |
| Packaging Type | Tape & Reel |
| PCB Connector Assembly Type | PCB Mount Header |
| PCB Mount Alignment | Without |
| PCB Mount Orientation | Vertical |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .062 in 1.57 mm |
| Primary Product Color | Black |
| Row-to-Row Spacing | .1 in 2.54 mm |
| Sealable | No |
| Termination Method to Printed Circuit Board | Surface Mount |
| UL Flammability Rating | UL 94V-0 |
