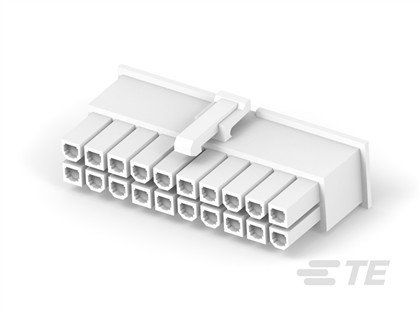

Headers&Wire Housings 20P RCPT VAL-U-LOK GW
| Weight | 0.05 kg |
|---|---|
| Dimensions | 1743.2 × 77919.8 cm |
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2-1969603-0 |
| PRC | AMP |
| Agency/Standard | CSA UL |
| Approved Standards | UL E28476 |
| Centerline (Pitch) | .165 in 4.2 mm |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Receptacle |
| Connector Height | .461 in 11.7 mm |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Board Wire-to-Wire |
| Contact Retention Within Housing | Without |
| Contact Type | Receptacle |
| Glow Wire Rating | GWT 750°C (Without Flame) |
| Housing Color | White |
| Housing Material | Polyamide |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Operating Temperature Range | -40 – 105 °C -40 – 221 °F |
| Operating Voltage | 600 VAC |
| Packaging Method | Bag |
| Packaging Quantity | 500 |
| Row-to-Row Spacing | .165 in 4.2 mm |
| Sealable | No |
| Termination Method to Wire & Cable | Crimp |
| UL Flammability Rating | UL 94V-2 |
| UL Rating | Recognized |
