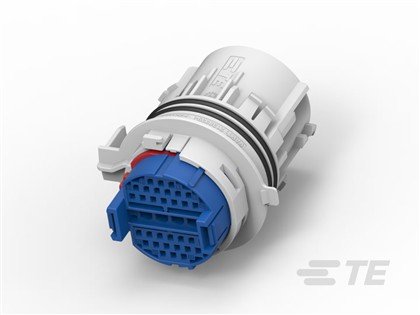

MALE PASS-THRU CONN KEY A 29 POSN
| Weight | 0.05 kg |
|---|---|
| Dimensions | 316980.5 × 26567.3 cm |
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2138338-7 |
| PRC | AMP |
| Centerline (Pitch) | .118 in .197 in 3 mm 5 mm |
| Circuit Application | Signal |
| Connector & Housing Type | Housing for Male Terminals |
| Connector Height | 3.169 in 80.5 mm |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Wire |
| Contact Size | 1.2mm 2.8mm |
| Contact Type | Tab |
| Housing Material | PA GF |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Mating Tab Width | .047 in .11 in 1.2 mm 2.8 mm |
| Number of Positions | 29 |
| Number of Rows | 1 6 |
| Operating Temperature (Max) | 100 °C 105 °C 110 °C 120 °C 125 °C 70 °C 75 °C 80 °C 85 °C 90 °C |
| Operating Temperature Range | -40 – 125 °C -40 – 257 °F |
| Packaging Method | Package |
| Packaging Quantity | 125 |
| Primary Product Color | Natural |
| Row-to-Row Spacing | .236 in 6 mm |
| Sealable | Yes |
| Strain Relief | With |
