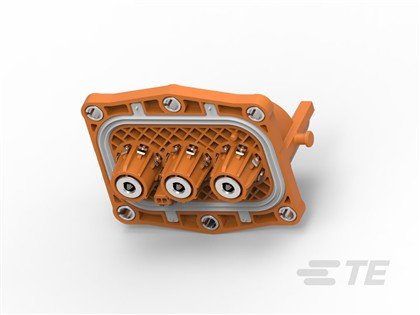

Board Connector 1 Row(s) Male
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2141230-2 |
| PRC | AMP |
| Centerline (Pitch) | .905 in 23 mm |
| Connector System | Wire-to-Board Wire-to-Device |
| Contact Size | 8mm |
| Contact Type | Pin |
| Header Type | Fully Shrouded |
| Mating Alignment | With |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 100 °C 105 °C 110 °C 120 °C 125 °C 130 °C 140 °C 70 °C 80 °C 85 °C |
| Operating Temperature Range | -40 – 140 °C -40 – 284 °F |
| PCB Connector Assembly Type | PCB Mount Header |
| Sealable | Yes |
| Shielded | Yes |
| UL Flammability Rating | UL 94HB |
