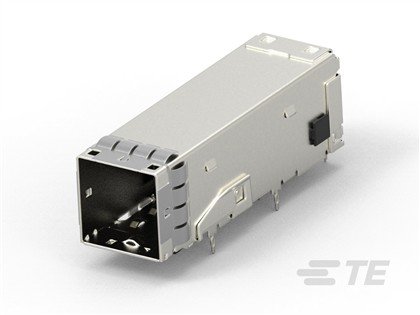

I/O Connectors MiniSAS HD 1×1 RCPT RECEPTACLE
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2149027-1 |
| PRC | AMP |
| Centerline (Pitch) | .75 in .03 mm |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector & Housing Type | Receptacle |
| Connector System | Cable-to-Board |
| Contact Base Material | Copper Alloy |
| Housing Color | Black |
| Housing Material | LCP (Liquid Crystal Polymer) |
| Number of Positions | 36 |
| Operating Temperature Range | -55 – 85 °C -67 – 185 °F |
| Packaging Method | Box & Tray Package |
| Packaging Quantity | 72 |
| PCB Mount Orientation | Right Angle |
| PCB Mount Retention | With |
| PCB Mount Retention Type | M2 Screw |
| PCB Thickness (Recommended) | .038 in .97 mm |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
| Termination Post & Tail Length | .065 in 1.64 mm |
| UL Flammability Rating | UL 94V-0 |
