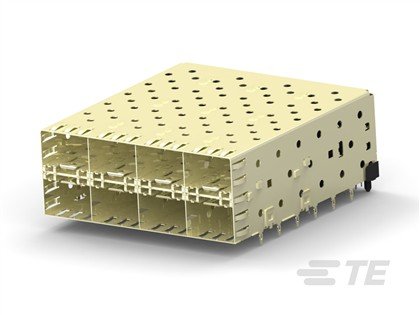

I/O Connectors PRESS FIT 2X4 REDUCED PROFILE
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2170286-1 |
| PRC | AMP |
| Centerline (Pitch) | .032 in .8 mm |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Mounting Type | Board Mount |
| Connector System | Cable-to-Board |
| Contact Mating Area Plating Material | Gold |
| Contact Mating Area Plating Material Thickness | 29.92 µin .76 µm |
| Number of Positions | 160 |
| Operating Temperature Range | -55 – 105 °C -67 – 221 °F |
| Packaging Method | Box & Tray Tray |
| PCB Thickness (Recommended) | .059 in 1.5 mm |
| Sealable | No |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
| Termination Post & Tail Length | .118 in 3 mm |
| UL Flammability Rating | UL 94V-0 |
