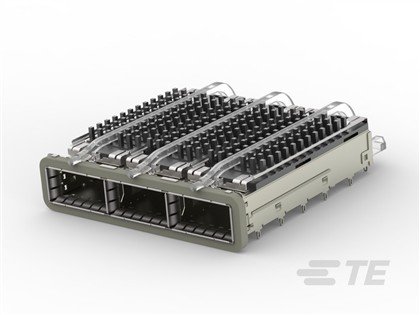

2170769-5

Additional information

Weight	0.05 kg
Manufacturer	TE CONNECTIVITY/AMP BRAND
Part Number	2170769-5
PRC	AMP
Circuit Application	Signal
Connector & Contact Terminates To	Printed Circuit Board
Connector Mounting Type	Board Mount
Connector System	Cable-to-Board
Operating Temperature Range	-40 – 85 °C -40 – 185 °F
Packaging Method	Box & Tray
PCB Contact Termination Area Plating Material	Tin
PCB Thickness (Recommended)	.062 in 1.57 mm
Sealable	No
Termination Method to Printed Circuit Board	Through Hole - Press-Fit
Termination Post & Tail Length	.081 in 2.05 mm
UL Flammability Rating	UL 94V-0
