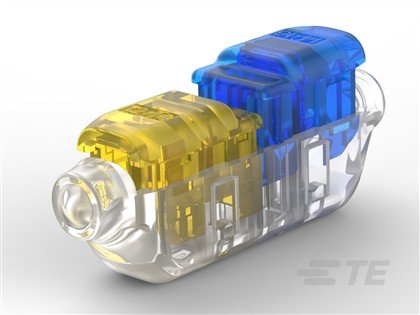

COOLSPLICE LW 12/14 TO 14/16 AWG
| Weight | 0.05 kg |
|---|---|
| Dimensions | 1.8948 cm |
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2213600-4 |
| PRC | AMP |
| Agency/Standard | IEC UL |
| Approved Standards | IEC 60988-2-3 UL 486C |
| Contact Base Material | Phosphor Bronze |
| Operating Temperature Range | -40 – 105 °C -40 – 221 °F |
| Operating Voltage | 600 VAC 400 VDC |
| Packaging Method | Box |
| Sealable | No |
| UL Flammability Rating | UL 94V-0 UL 94V-2 |
| Wire Insulation Support | With |
| Wire Size | 12 – 14 AWG 14 – 16 AWG 2.5 – 1.5 mm² 4 – 2.5 mm² |
