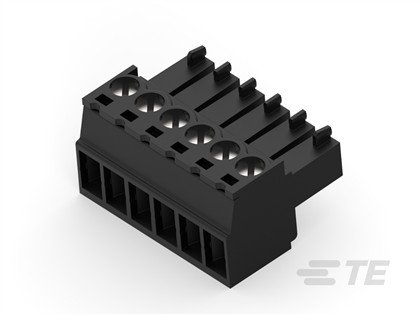

SMT TB SCREW RECEPTACLE 3.5MM
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2213936-6 |
| PRC | AMP |
| Centerline (Pitch) | .138 in 3.5 mm |
| Circuit Application | Power |
| Connector & Contact Terminates To | Wire & Cable |
| Contact Base Material | Copper Alloy |
| Contact Current Rating (Max) | 8:00 AM |
| Contact Mating Area Plating Material | Tin |
| Housing Material | Thermoplastic |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Operating Voltage | 300 VAC |
| Primary Product Color | Black |
| Wire Size | 30 – 16 AWG .05 – 1.31 mm² |
