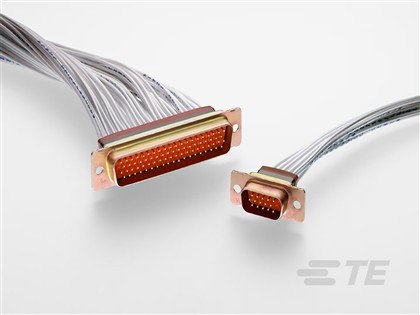

D-Sub Standard Conn RCPT ASSY AMPLIMITE SERIES
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2221760-4 |
| PRC | AMP |
| Centerline (Pitch) | .109 in 2.77 mm |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Receptacle |
| Connector Mounting Type | Panel Mount |
| Connector System | Cable-to-Cable |
| Contact Current Rating (Max) | 7.5 A |
| Contact Size | Size 20 |
| Housing Material | Thermoplastic |
| Mating Retention | Without |
| Number of Positions | 37 |
| Operating Temperature Range | -55 – 125 °C -67 – 257 °F |
| Primary Product Color | Black |
| Sealable | Yes |
| Shielded | No |
| Termination Method to Wire & Cable | Crimp |
