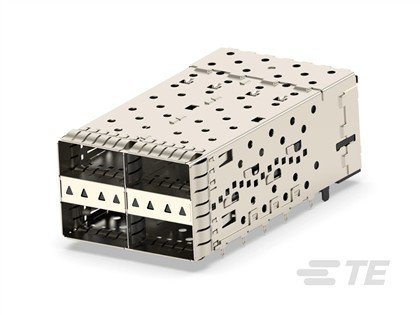

2X2 QSFP SPRING CAGE AND CONNECTOR
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2293961-1 |
| PRC | AMP |
| Centerline (Pitch) | .031 in .8 mm |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Mounting Type | Board Mount |
| Connector System | Cable-to-Board |
| Contact Current Rating (Max) | .5 A |
| Number of Positions | 152 |
| Operating Temperature Range | -55 – 105 °C -67 – 221 °F |
| Sealable | No |
