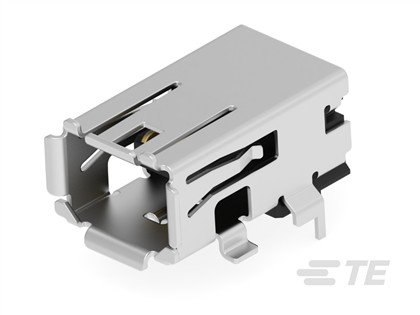

INDUSTRIAL MINI I/O HDR TYPE II TRAY
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2294415-2 |
| PRC | AMP |
| Centerline (Pitch) | .05 in 1.27 mm |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Mounting Type | Board Mount |
| Connector Product Type | Connector Assembly |
| Connector System | Cable-to-Board |
| Contact Base Material | Copper Alloy |
| Contact Current Rating (Max) | 1.5 A |
| Contact Mating Area Plating Material | Gold |
| Contact Underplating Material | Nickel |
| Housing Color | Black |
| Housing Material | LCP |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Number of Positions | 8 |
| Operating Temperature Range | -40 – 85 °C -40 – 185 °F |
| Packaging Method | Box & Tray Tray |
| Panel Mount Feature | Without |
| PCB Mount Orientation | Right Angle |
| PCB Mount Retention Type | SMT + Through Hole |
| Shielded | Yes |
| Termination Method to Printed Circuit Board | Surface Mount |
| UL Flammability Rating | UL 94V-0 |
