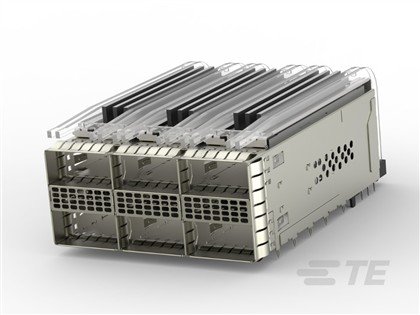

I/O Connectors ZQSFP ASSY 2X3 With HS and LP
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2299924-5 |
| PRC | AMP |
| Centerline (Pitch) | .032 in .8 mm |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Mounting Type | Board Mount |
| Connector System | Cable-to-Board |
| Contact Current Rating (Max) | .5 A |
| Contact Mating Area Plating Material | Gold |
| Contact Mating Area Plating Material Thickness | .76 µin 30 µm |
| Contact Underplating Material | Tin |
| Number of Positions | 228 |
| Operating Temperature Range | -40 – 85 °C -40 – 185 °F |
| Packaging Method | Box & Tray |
| PCB Contact Termination Area Plating Material | Gold |
| PCB Thickness (Recommended) | .062 in 1.57 mm |
| Sealable | No |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
| Termination Post & Tail Length | .079 in 2 mm |
| UL Flammability Rating | UL 94V-0 |
