2301826-1

2301826-1

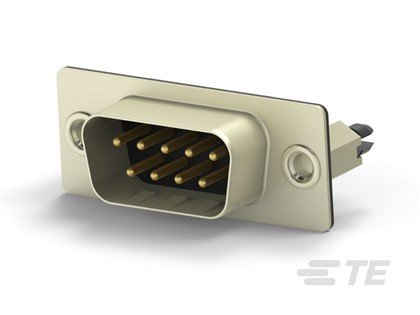

D-Sub Standard Connectors 9P PLUG VERT HD20

In-stock: 1,529

Bulk Quantity & Price List


Quantity
Unit price
Ext price
25+
US$3.01
US$75.25
150+
US$2.53
US$379.50
350+
US$2.39
US$836.50
700+
US$2.25
US$1,575.00
3600+
US$1.89
US$6,804.00
5000+
US$1.72
US$8,600.00
10000+
US$1.62
US$16,200.00
25000+
US$1.50
US$37,500.00
Categories: , ,

Additional information

Weight 0.05 kg
Manufacturer TE CONNECTIVITY/AMP BRAND
Part Number 2301826-1
PRC AMP
Centerline (Pitch) .109 in 2.77 mm
Circuit Application Signal
Connector & Contact Terminates To Printed Circuit Board
Connector & Housing Type Plug
Connector Mounting Type Board Mount
Connector Profile High
Connector System Wire-to-Board
Contact Current Rating (Max) 1.5 A
Contact Shape & Form Round
Housing Material PBT GF
Mating Retention With
Mating Retention Type Threaded Inserts 4-40 UNC
Number of Positions 9
Number of Rows 2
Operating Temperature Range -55 – 105 °C -67 – 221 °F
Packaging Method Box & Tray
PCB Mount Orientation Vertical
PCB Mount Retention With
PCB Mount Retention Type Boardlock
Primary Product Color Black
Row-to-Row Spacing .111 in 2.84 mm
Termination Method to Printed Circuit Board Through Hole - Solder
