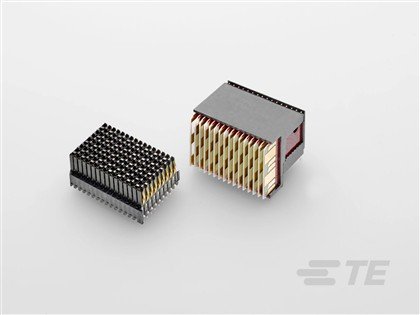

High Speed/Modular Conn VERTRECASSYLEFTEND HALF
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2302788-1 |
| PRC | AMP |
| Centerline (Pitch) | .071 in 1.8 mm |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Mounting Type | Board Mount |
| Connector System | Board-to-Board |
| Contact Current Rating (Max) | 1:00 AM |
| Housing Material | LCP - GF (Liquid Crystal Polymer) |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Number of Positions | 72 |
| Number of Rows | 9 |
| Operating Temperature Range | -55 – 125 °C -67 – 221 °F |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| PCB Mount Orientation | Vertical |
| Row-to-Row Spacing | .071 in 1.8 mm |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
