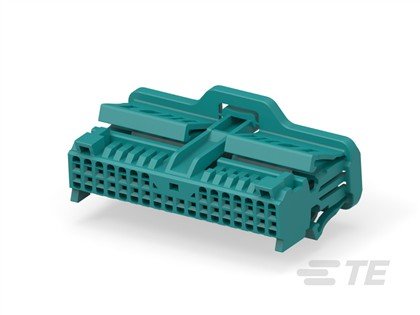

32POSNANOMQSREC HSGUNSLDCOD NEUT
| Weight | 0.05 kg |
|---|---|
| Dimensions | 1.3835 × 58314.8 cm |
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2303088-1 |
| PRC | AMP |
| Agency/Standard | LV214 |
| Centerline (Pitch) | .071 in 1.8 mm |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Housing for Female Terminals |
| Connector Height | .7 in 17.8 mm |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Board Wire-to-Wire |
| Contact Current Rating (Max) | 3:00 AM |
| Contact Size | .5mm |
| Contact Type | Receptacle |
| Housing Material | PBT GF |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Mating Tab Width | .02 in .5 mm |
| Number of Positions | 32 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C 221 °F |
| Operating Temperature Range | -40 – 105 °C -40 – 221 °F |
| Packaging Method | Bag |
| Packaging Quantity | 1000 |
| Primary Product Color | Water Blue |
| Row-to-Row Spacing | .059 in 1.5 mm |
| Sealable | No |
