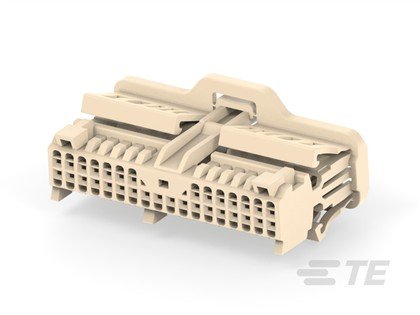

32POS NANOMQS REC HSG UNSLD COD B FFC
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2303088-3 |
| PRC | AMP |
| Centerline (Pitch) | .071 in 1.8 mm |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Housing for Female Terminals |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Board Wire-to-Wire |
| Contact Current Rating (Max) | 3:00 AM |
| Contact Size | .5mm |
| Contact Type | Receptacle |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Mating Tab Width | .02 in .5 mm |
| Number of Positions | 32 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C 221 °F |
| Operating Temperature Range | -40 – 105 °C -40 – 221 °F |
| Primary Product Color | Natural |
| Sealable | No |
