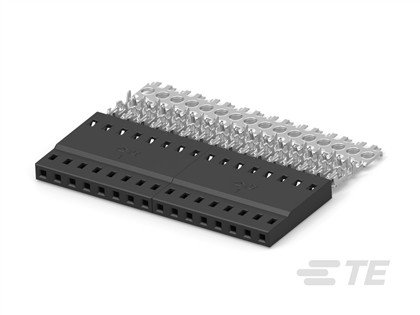

8P 2MM REC IDC PLAIN 26-30 STRIP Tin
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2317222-8 |
| PRC | AMP |
| Centerline (Pitch) | .079 in 2 mm |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Receptacle |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector Product Type | Connector Assembly |
| Connector System | Wire-to-Board |
| Contact Base Material | Phosphor Bronze |
| Contact Current Rating (Max) | 2:00 AM |
| Contact Layout | Inline |
| Contact Retention Within Housing | Without |
| Contact Type | Socket |
| Housing Material | Thermoplastic |
| Mating Retention | With |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Operating Temperature Range | -40 – 105 °C -40 – 221 °F |
| Operating Voltage | 125 V |
| Panel Mount Feature | Without |
| PCB Mount Retention | Without |
| Primary Product Color | Black |
| Sealable | No |
| Strain Relief | Without |
| Termination Method to Wire & Cable | Insulation Displacement (IDC) |
