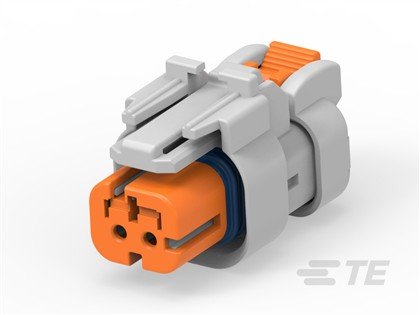

2320932-4

Additional information

Weight	0.05 kg
Dimensions	144736.75 × 820.33 cm
Manufacturer	TE CONNECTIVITY/AMP BRAND
Part Number	2320932-4
PRC	AMP
Centerline (Pitch)	.177 in 4.5 mm
Circuit Application	Power Signal
Connector & Contact Terminates To	Wire & Cable
Connector & Housing Type	Housing for Female Terminals
Connector Height	.925 in 23.5 mm
Connector Mounting Type	Cable Mount (Free-Hanging)
Connector System	Wire-to-Device Wire-to-Wire
Contact Current Rating (Max)	13 A
Contact Size	Size 16
Contact Type	Socket
Housing Material	PBT GF
Mating Alignment	With
Mating Alignment Type	Keyed
Number of Positions	2
Number of Rows	1
Operating Temperature (Max)	150 °C 302 °F
Operating Temperature Range	-40 – 150 °C -40 – 302 °F
Operating Voltage	250 VAC 250 VDC
Packaging Method	Box
Primary Product Color	Gray
Row-to-Row Spacing	0 in 0 mm
Sealable	Yes
Strain Relief	Add By Accessory
UL Flammability Rating	UL 94V-0
