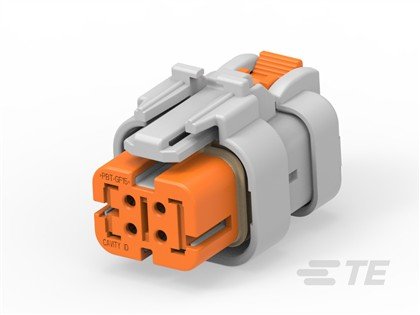

4POSAMPSEAL 16SOC HSG ASSYSLDCOD 4
| Weight | 0.05 kg |
|---|---|
| Dimensions | 144536.7 × 99725.33 cm |
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2320934-4 |
| PRC | AMP |
| Centerline (Pitch) | .209 in 5.3 mm |
| Circuit Application | Power Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Housing for Female Terminals |
| Connector Height | 1.055 in 26.8 mm |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Device Wire-to-Wire |
| Contact Current Rating (Max) | 13 A |
| Contact Size | Size 16 |
| Contact Type | Socket |
| Housing Material | PBT GF |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 150 °C 302 °F |
| Operating Temperature Range | -40 – 150 °C -40 – 302 °F |
| Operating Voltage | 250 VAC 250 VDC |
| Packaging Method | Box |
| Primary Product Color | Gray |
| Row-to-Row Spacing | .177 in 4.5 mm |
| Sealable | Yes |
| Strain Relief | Add By Accessory |
| UL Flammability Rating | UL 94V-0 |
