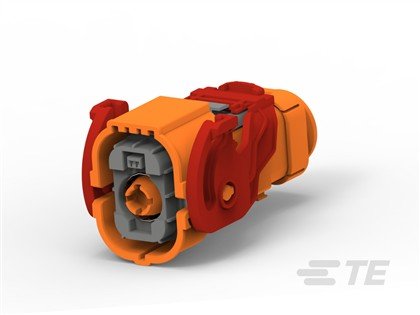

1POSP2PSOC HSG ASSY180DEGCODB50SQMM
| Weight | 0.05 kg |
|---|---|
| Dimensions | 102 × 59 cm |
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2324086-2 |
| PRC | AMP |
| Agency/Standard | LV214 |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Housing for Female Terminals |
| Connector Mounting Type | Panel Mount |
| Contact Current Rating (Max) | 200 A |
| Mating Alignment Type | Polarized |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 140 °C |
| Operating Temperature Range | -40 – 140 °C |
| Operating Voltage | 850 VDC |
| Packaging Method | Box |
| Primary Product Color | Orange |
| Sealable | Yes |
| UL Flammability Rating | UL 94V-0 |
