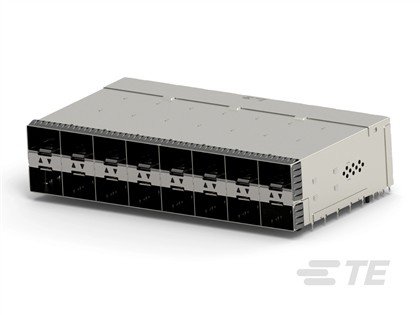

SFP56 STACKED 2X8 RECEPTACLE ASSEMBLY
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2340033-7 |
| PRC | AMP |
| Centerline (Pitch) | .018 in .6 mm |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Mounting Type | Board Mount |
| Number of Positions | 20 |
| Operating Temperature Range | -55 – 105 °C -67 – 221 °F |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
