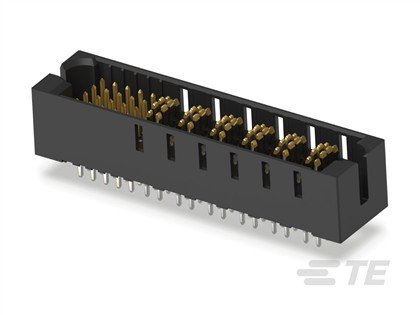

Combination Line Connector 26 Contact(s) Solder T
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2343044-1 |
| PRC | AMP |
| Centerline (Pitch) | .1 in .25 in 2.54 mm 6.35 mm |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector & Housing Type | Plug |
| Connector Mounting Type | Board Mount |
| Connector System | Board-to-Board |
| Contact Current Rating (Max) | 33 A |
| Contact Mating Area Plating Material | Gold |
| Contact Mating Area Plating Material Thickness | .076 µm 3 µin |
| Contact Retention Within Housing | With |
| Contact Type | Blade Pin |
| Header Type | Fully Shrouded |
| Housing Color | Black |
| Housing Material | High Temperature Thermoplastic Glass Filled |
| Number of Positions | 26 |
| Number of Power Positions | 6 |
| Number of Rows | 4 |
| Number of Signal Positions | 20 |
| Operating Temperature Range | -40 – 125 °C -40 – 257 °F |
| Operating Voltage | 200 VAC |
| Packaging Method | Box |
| PCB Contact Termination Area Plating Material | Tin |
| PCB Mount Orientation | Vertical |
| Row-to-Row Spacing | .1 in 2.54 mm |
| Sealable | No |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
| UL Flammability Rating | UL 94V-0 |
