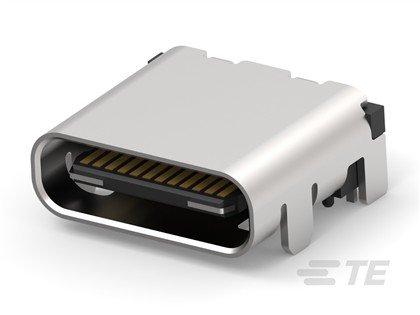

USB Connector Right Angle Solder Terminal Recepta
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2345986-1 |
| PRC | AMP |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector & Housing Type | Receptacle |
| Connector Mounting Type | Board Mount |
| Connector System | Cable-to-Board Wire-to-Board |
| Contact Current Rating (Max) | 5:00 AM |
| Contact Mating Area Plating Material | Gold Flash |
| Contact Mating Area Plating Material Thickness | 5 µin |
| Housing Color | Black |
| Housing Material | LCP (Liquid Crystal Polymer) |
| Operating Temperature Range | -40 – 85 °C |
| Packaging Method | Reel |
| Packaging Quantity | 900 |
| Termination Method to Printed Circuit Board | Surface Mount |
| UL Flammability Rating | UL 94V-0 |
