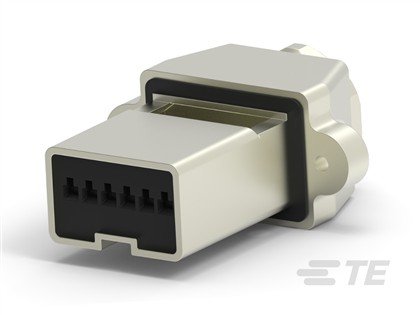

DYNAMIC MOTOR CONN 6P PLUG KIT. PF
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2347081-1 |
| PRC | AMP |
| Centerline (Pitch) | .15 in 3.81 mm |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Plug Receptacle |
| Connector Mounting Type | Panel Mount |
| Connector Product Type | Housing Kit |
| Connector System | Wire-to-Motor |
| Contact Current Rating (Max) | 9:00 AM |
| Contact Mating Area Plating Material | Gold |
| Contact Retention Within Housing | With |
| Mating Alignment | Without |
| Mating Retention | With |
| Mating Retention Type | Screwlock |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Operating Temperature Range | -30 – 105 °C -22 – 221 °F |
| Sealable | Yes |
| Shielded | No |
| Termination Method to Wire & Cable | Crimp |
| UL Flammability Rating | UL 94V-0 |
