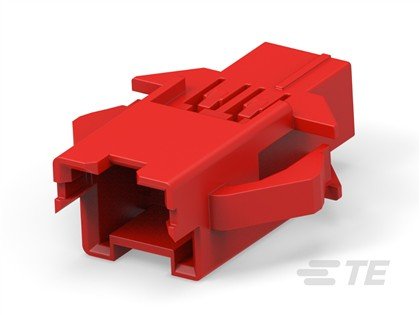

HSGRECPANEL MOUNT GWTEP2.5RED
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2349952-2 |
| PRC | AMP |
| Centerline (Pitch) | .098 in 2.5 mm |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Receptacle |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector Product Type | Housing |
| Connector System | Wire-to-Board |
| Contact Current Rating (Max) | 4.2 A |
| Mating Retention | With |
| Mating Retention Type | Latch |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature Range | -55 – 105 °C -67 – 221 °F |
| Primary Product Color | Red |
| Sealable | No |
| Termination Method to Wire & Cable | Crimp |
