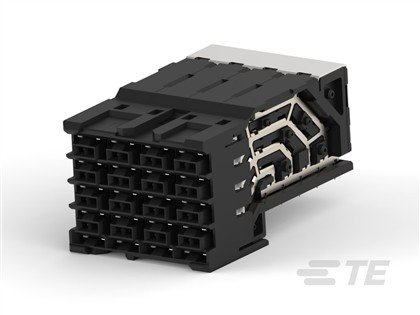

Board Connector 52 Contact(s) 4 Row(s) Female Rig
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2356426-1 |
| PRC | AMP |
| Agency/Standard | UL |
| Approved Standards | UL E28476 |
| Centerline (Pitch) | .154 in 3.9 mm |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector System | Board-to-Board |
| Contact Base Material | Phosphor Bronze |
| Contact Current Rating (Max) | .4 A |
| Contact Shape & Form | Dual Beam |
| Contact Type | Receptacle |
| Housing Material | LCP - GF (Liquid Crystal Polymer) |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Mating Retention | Without |
| Number of Positions | 32 |
| Number of Power Positions | 32 |
| Number of Rows | 4 |
| Number of Signal Positions | 32 |
| Operating Temperature Range | -55 – 105 °C -67 – 221 °F |
| Operating Voltage | 80 VAC |
| Packaging Method | Tube |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| PCB Contact Termination Area Plating Material | Selective Tin |
| PCB Mount Orientation | Right Angle |
| PCB Mount Retention | With |
| PCB Mount Retention Type | Action/Compliant Tail |
| Primary Product Color | Black |
| Row-to-Row Spacing | .098 in 2.5 mm |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
| UL Flammability Rating | UL 94V-0 |
