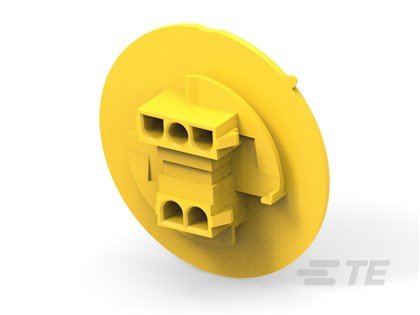

UMNL TWIST-N-LOK 5POS .100″” PA
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2359624-2 |
| PRC | AMP |
| Centerline (Pitch) | .25 in 6.35 mm |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Cap |
| Connector Mounting Type | Panel Mount |
| Connector System | Wire-to-Panel |
| Contact Current Rating (Max) | 19 A |
| Contact Retention Within Housing | Without |
| Contact Type | Pin |
| Glow Wire Rating | Standard Part - Not Glow Wire |
| Housing Color | Yellow |
| Housing Material | 66 Nylon |
| Number of Positions | 5 |
| Number of Rows | 2 |
| Operating Temperature Range | -55 – 105 °C -67 – 221 °F |
| Operating Voltage | 600 VAC 600 VDC |
| Packaging Method | Package |
| Sealable | Yes |
| UL Flammability Rating | UL 94V-2 |
