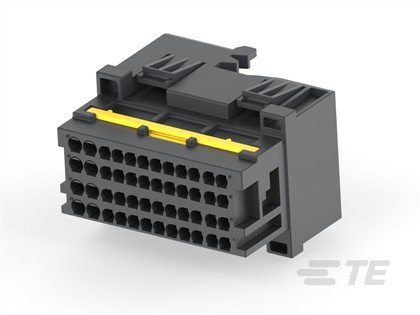

CONN PLUG HSG 48POS
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2366066-1 |
| PRC | AMP |
| Centerline (Pitch) | .118 in .138 in 3 mm 3.5 mm |
| Circuit Application | Power & Signal |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Housing for Male Terminals |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Wire |
| Contact Size | 1.2mm |
| Contact Type | Tab |
| Mating Alignment | With |
| Mating Alignment Type | Keyed |
| Mating Tab Width | .045 in 1.15 mm |
| Number of Positions | 48 |
| Number of Rows | 4 |
| Operating Temperature (Max) | 125 °C 257 °F |
| Operating Temperature Range | -40 – 120 °C -40 – 248 °F |
| Primary Product Color | Black |
| Sealable | No |
| UL Flammability Rating | UL 94HB |
