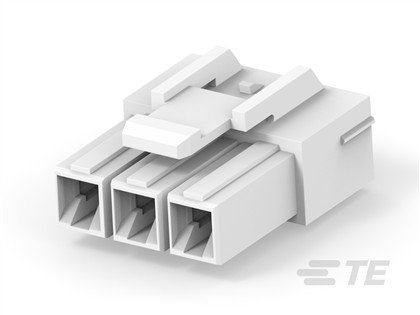

Plug HSG 3P WHT HCI 6.2 Pitch Inner Lock
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2408780-3 |
| PRC | AMP |
| Centerline (Pitch) | .244 in 6.2 mm |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Housing for Female Terminals |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Wire |
| Contact Retention Within Housing | With |
| Contact Type | Socket |
| Housing Color | White |
| Housing Material | PA 66 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Number of Signal Positions | 3 |
| Operating Temperature Range | -25 – 90 °C -13 – 194 °F |
| Operating Voltage | 600 VAC |
| Packaging Method | Bag |
| Sealable | No |
| UL Flammability Rating | UL 94V-0 |
