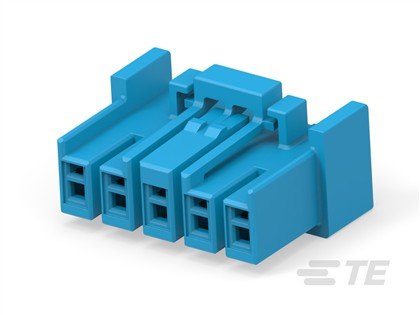

Socket HSG 5P Blue HCI 4.0 Pitch
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2420266-5 |
| PRC | AMP |
| Centerline (Pitch) | .157 in 4 mm |
| Connector & Contact Terminates To | Wire & Cable |
| Connector & Housing Type | Housing for Female Terminals |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Connector System | Wire-to-Board |
| Contact Retention Within Housing | With |
| Contact Type | Socket |
| Housing Color | Light Blue |
| Housing Material | PBT |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Number of Signal Positions | 6 |
| Operating Temperature Range | -25 – 85 °C -13 – 185 °F |
| Operating Voltage | 300 VAC |
| Packaging Method | Bag |
| Row-to-Row Spacing | .234 in 5.95 mm |
| Sealable | No |
| UL Flammability Rating | UL 94V-0 |
