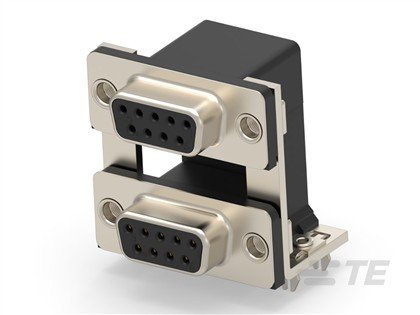

CONN D-SUB RCPT 9POS R/A SLDR
| Weight | 0.05 kg |
|---|---|
| Manufacturer | TE CONNECTIVITY/AMP BRAND |
| Part Number | 2454917-1 |
| PRC | AMP |
| Centerline (Pitch) | .75 in 19.05 mm |
| Circuit Application | Signal |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector & Housing Type | Receptacle |
| Connector Mounting Type | Board Mount |
| Connector Profile | Standard |
| Connector System | Board-to-Board |
| Contact Current Rating (Max) | 3:00 AM |
| Contact Shape & Form | Round |
| Mating Retention | With |
| Mating Retention Type | Female Screwlocks Fixed |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Number of Signal Positions | 9 |
| Operating Temperature Range | -55 – 105 °C 131 – 221 °F |
| PCB Mount Orientation | Vertical |
| PCB Mount Retention | With |
| PCB Mount Retention Type | Mounting Hole |
| Row-to-Row Spacing | .112 in 2.84 mm |
| Shielded | No |
| UL Flammability Rating | UL 94V-0 |
